- 3FParts Product Code (3PC)
- 3F-00125-501-2208

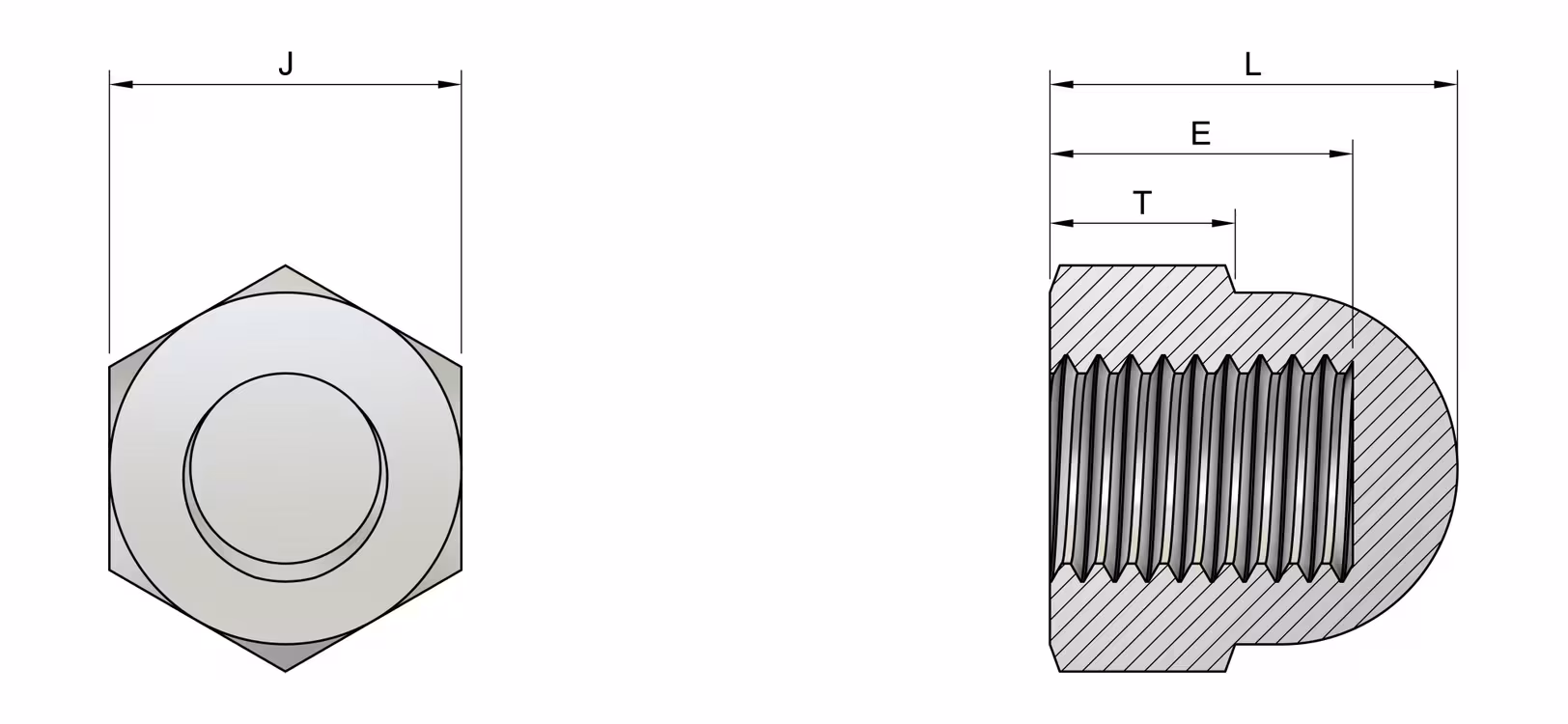

- Socket Size (J)
- 13mm, Tolerance: +0/-0.27mm
- Nut Thickness (T)
- 6.5mm, Tolerance: +0/-0.36mm
- Overall Thickness (L)
- 15mm, Tolerance: +0/-0.43mm
- Thread Length (Max) (E)
- 11.35mm
- Thread Size (Dia.)
- M8
- Thread Pitch
- 1.25 mm
- Manufacturing Standard
- DIN 1587
- Material
- Stainless Steel 304 (A2-70)

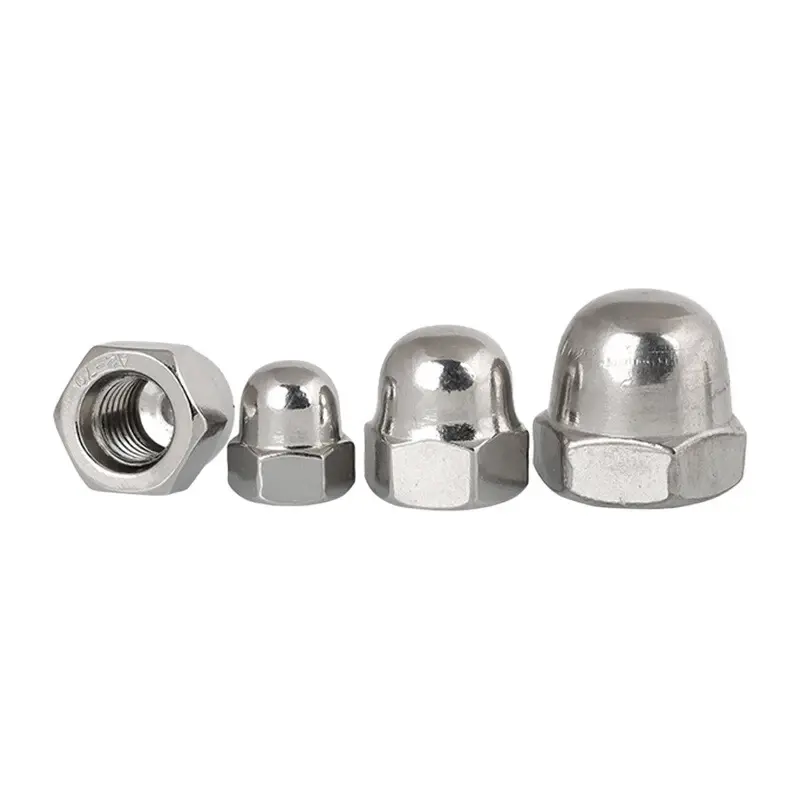

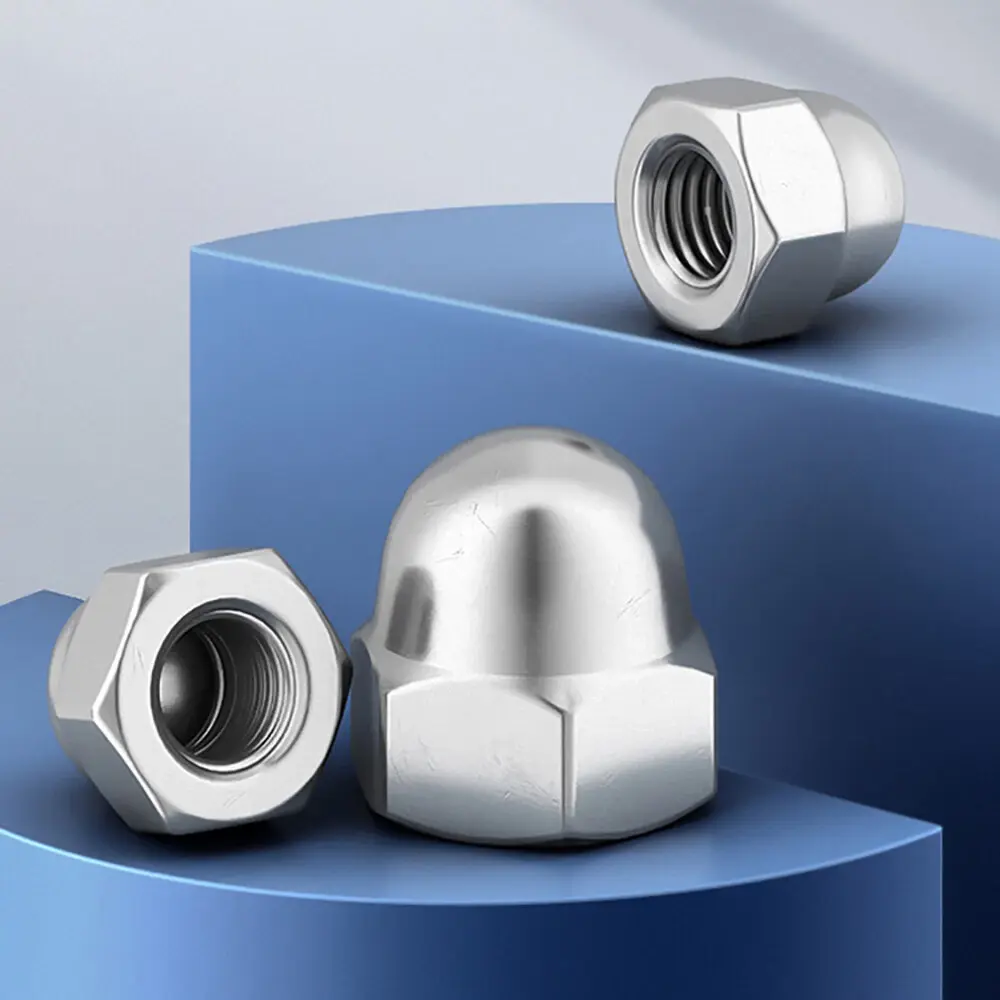

M8 Dome Nuts (DIN 1587) - Stainless Steel 304 (A2-70)
- 13mm, Tolerance: +0/-0.27mm Socket Size (J)
- 6.5mm, Tolerance: +0/-0.36mm Nut Thickness (T)
- 15mm, Tolerance: +0/-0.43mm Overall Thickness (L)
- 11.35mm Thread Length (Max) (E)
- M8 Thread Size (Dia.)
- 1.25 mm Thread Pitch
- DIN 1587 Manufacturing Standard
- Stainless Steel 304 (A2-70) Material
