- 3FParts Product Code (3PC)
- 3F-00125-326-2347
- Head Diameter (Max) (D)
- 11.3mm
- Countersunk Angle (CA)
- 90 Degrees Tolerance: +2/-0 Degrees
- Countersunk Length (Max) (H)
- 3mm
- Drive Size
- PH3
- Head Diameter (Min) (D)
- 10.57mm
- Thread Size (Dia.)
- M6
- Thread Pitch
- 1.00 mm
- Length (L)
- 30mm
- Manufacturing Standard
- DIN 965
- Material
- Stainless Steel 304
- Fully Threaded
- Yes

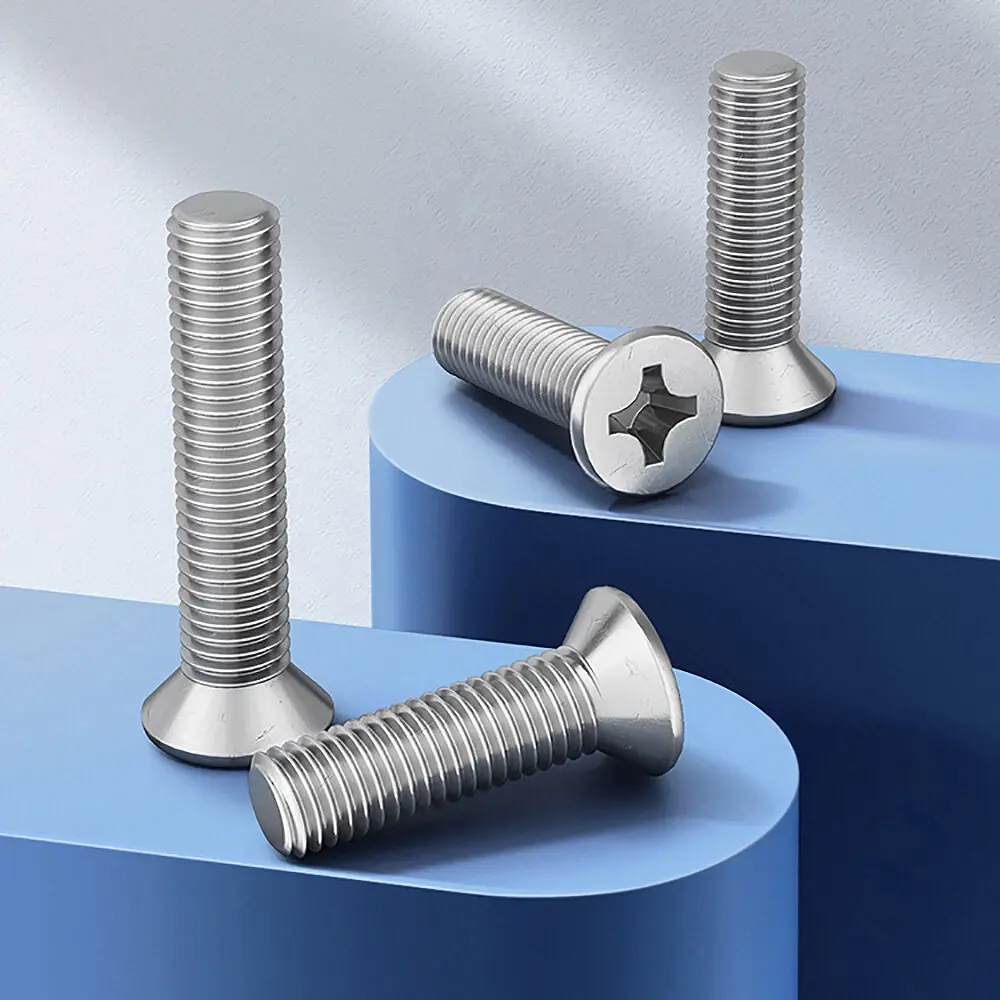

M6 x 30mm CSK Phillips Countersunk Machine Screws (DIN 965) - Stainless Steel 304
- 11.3mm Head Diameter (Max) (D)
- 90 Degrees Tolerance: +2/-0 Degrees Countersunk Angle (CA)
- 3mm Countersunk Length (Max) (H)
- PH3 Drive Size
- 10.57mm Head Diameter (Min) (D)
- M6 Thread Size (Dia.)
- 1.00 mm Thread Pitch
- 30mm Length (L)
- DIN 965 Manufacturing Standard
- Stainless Steel 304 Material
- Yes Fully Threaded
