M1.6 x 6mm Socket Head (Allen Bolt) Cap Screw (DIN 912) - Stainless Steel 304 (A2-70)

3FParts Product Code (3PC): 3F-00125-426-1986
Email to a Friend

M1.6 x 6mm Socket Head (Allen Bolt) Cap Screw (DIN 912) - Stainless Steel 304 (A2-70)

3FParts Product Code (3PC): 3F-00125-426-1986
₹35.00 0% Off ₹35.00

For bulk orders or B2B inquiries, email us: 3fparts@gmail.com

Thread Size (Dia.): M1.6
Thread Pitch: 0.35 mm
Length (L): 6mm
Manufacturing Standard: DIN 912
Material: Stainless Steel 304 (A2-70)
Brands: 3FPARTS

Technical Specification : Download .


You may also like

3FParts Product Code (3PC)
3F-00125-426-1986

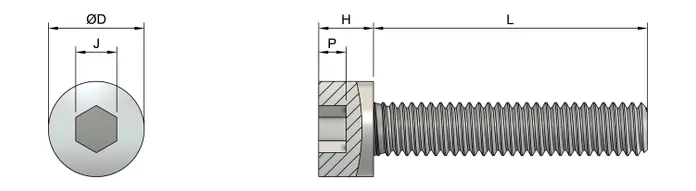

Head Diameter (D)
3mm, Tolerance: +0/-0.14mm
Head Length (H)
1.6mm, Tolerance: +0/-0.14mm
Hexagon Depth (P)
0.7mm
Socket Size (J)
1.5mm
Thread Size (Dia.)
M1.6
Thread Pitch
0.35 mm
Length (L)
6mm
Manufacturing Standard
DIN 912
Material
Stainless Steel 304 (A2-70)
Fully Threaded
Yes
Download Tech Spec
M1.6 x 6mm Socket Head (Allen Bolt) Cap Screw  (DIN 912) - Stainless Steel 304 (A2-70)

M1.6 x 6mm Socket Head (Allen Bolt) Cap Screw (DIN 912) - Stainless Steel 304 (A2-70)

  • 3mm, Tolerance: +0/-0.14mm Head Diameter (D)
  • 1.6mm, Tolerance: +0/-0.14mm Head Length (H)
  • 0.7mm Hexagon Depth (P)
  • 1.5mm Socket Size (J)
  • M1.6 Thread Size (Dia.)
  • 0.35 mm Thread Pitch
  • 6mm Length (L)
  • DIN 912 Manufacturing Standard
  • Stainless Steel 304 (A2-70) Material
  • Yes Fully Threaded
